ARB Twin Motor Portable 12V Air Compressor | CKMTP12

Name: ARB Twin Motor Portable 12V Air Compressor | CKMTP12
Brand: ARB
Price: 847.96 USD
Availability: InStock

ARB Twin Motor Portable 12V Air Compressor | CKMTP12

$847.96 USD

~~$1,059.95 USD~~ $847.96 USD

Sale Sold out

Free Shipping

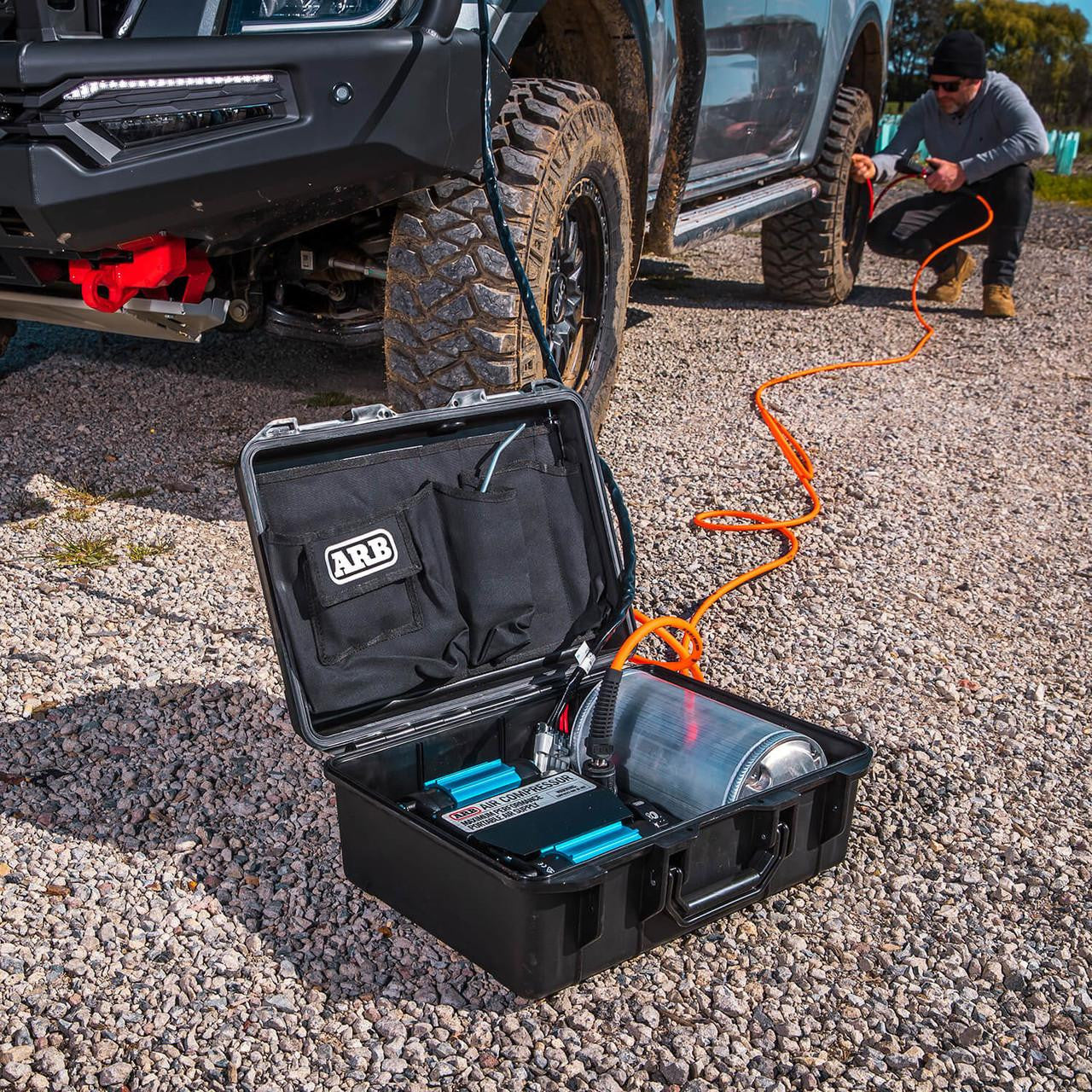

ARB's new CKMTP12 twin portable air compressor was designed to fill the market need for a compact sized yet high performance compressed air source for rapid inflation of large tires as well as the high volume air needs of most air powered tools. The ARB CKMTP12 is a world class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions. ;

Features & Benefits

Designed for inflating tires and Air Locker activation when used in conjunction with optional accessories
On-board model available in either a 12V or 24V configuration
Suitable for many air tools when used in conjunction with a 1 gallon air tank (optional with on-board models)
100% duty cycle
Sealed for moisture and dust resistance
Hard anodized cylinder bores for reduced friction
Teflon impregnated carbon fiber piston seals for maximum trouble-free life
Anodized mounting bracket dissipates heat
Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
Over-pressure safety valve equipped

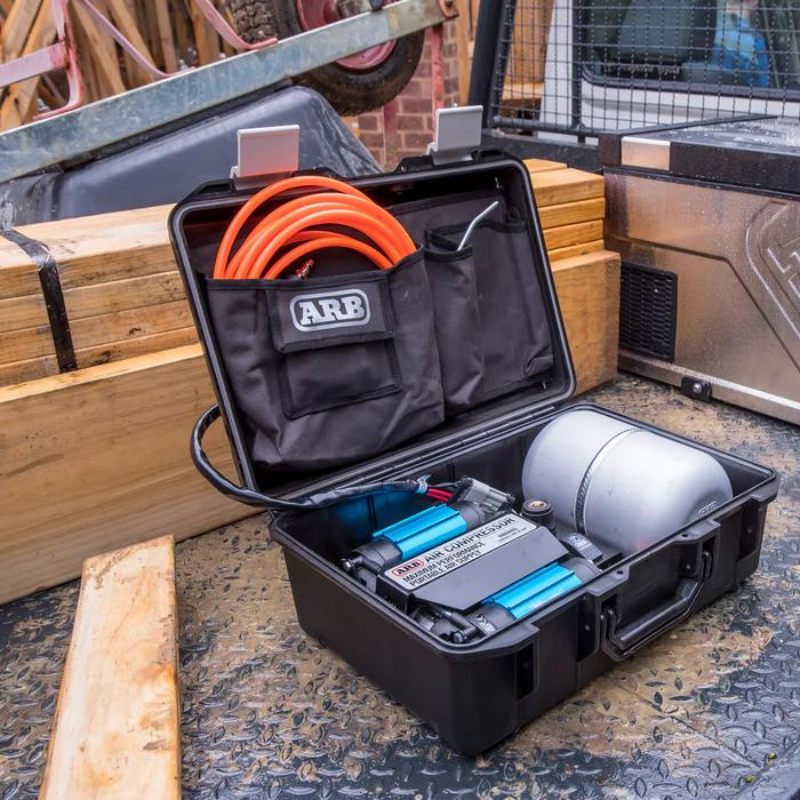

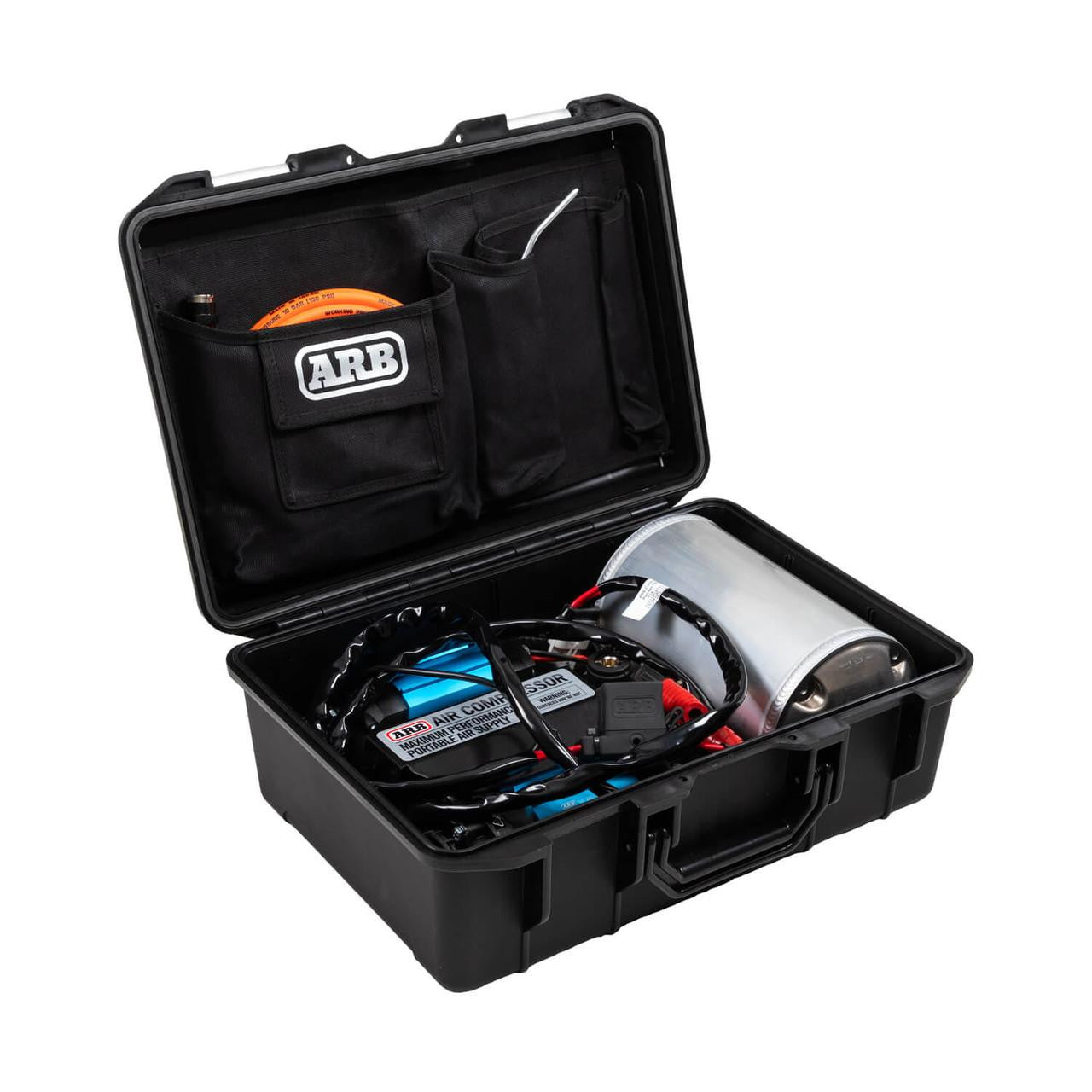

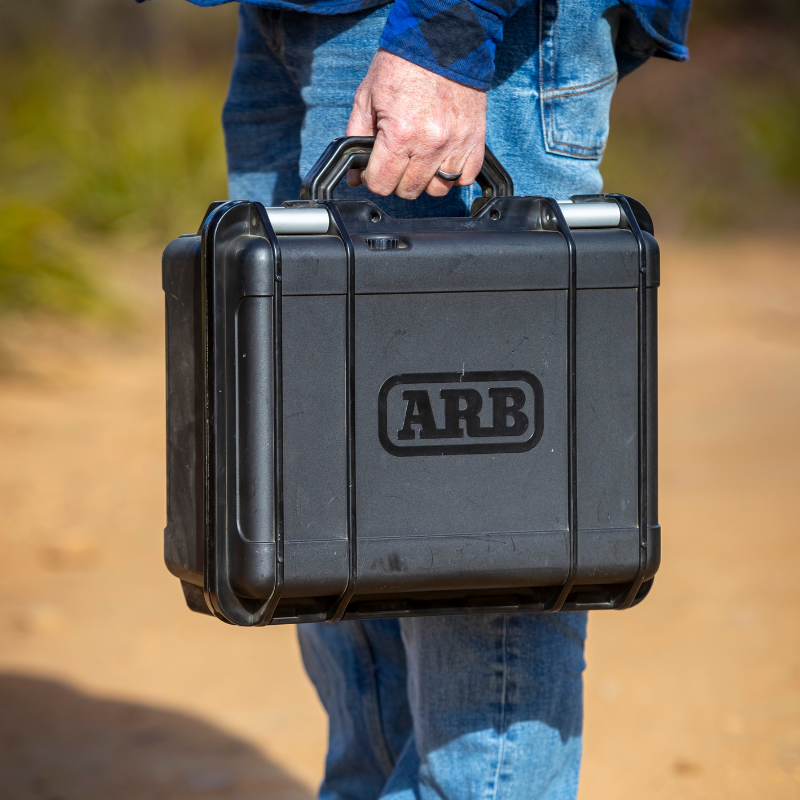

HARDSHELL CARRY CASE

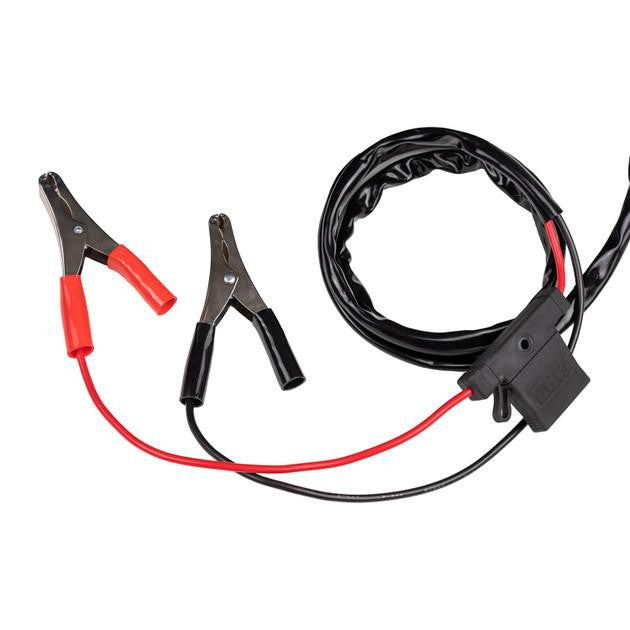

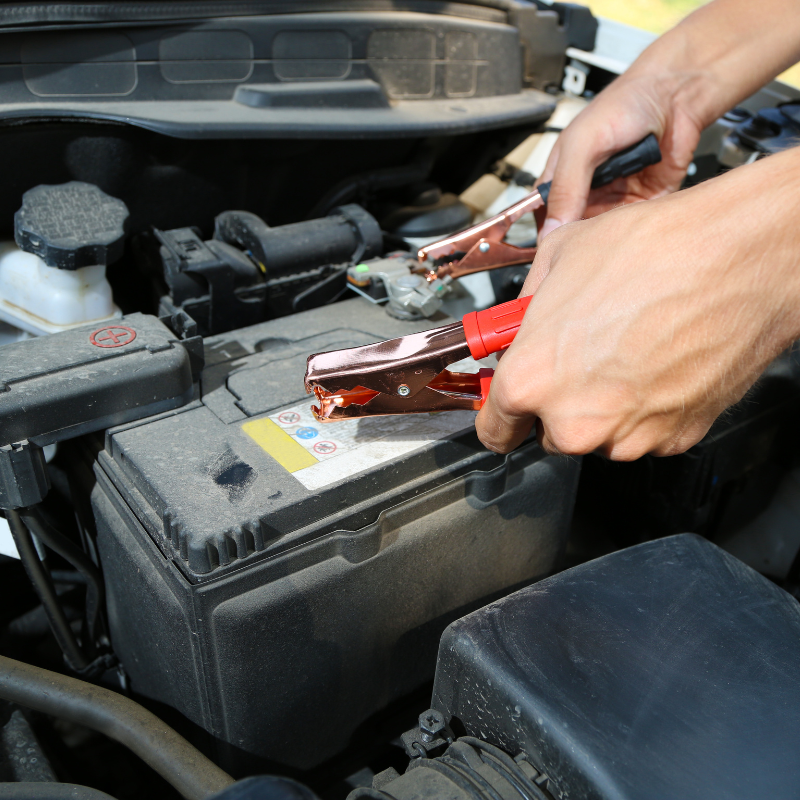

QUICK DISCONNECT CLIPS
FROM TRAIL TO JOB SITE

AIR ON-THE-GO

When it comes to air, well, we can't live without it. ARB portable air compressors are an incredible resource for work and play; just ask the thousands of off-roaders around the world whom praise their reliability and performance. This hard-earned reputation stems from superior engineering and quality materials that stand the test of time.

COMPARE OPTIONS

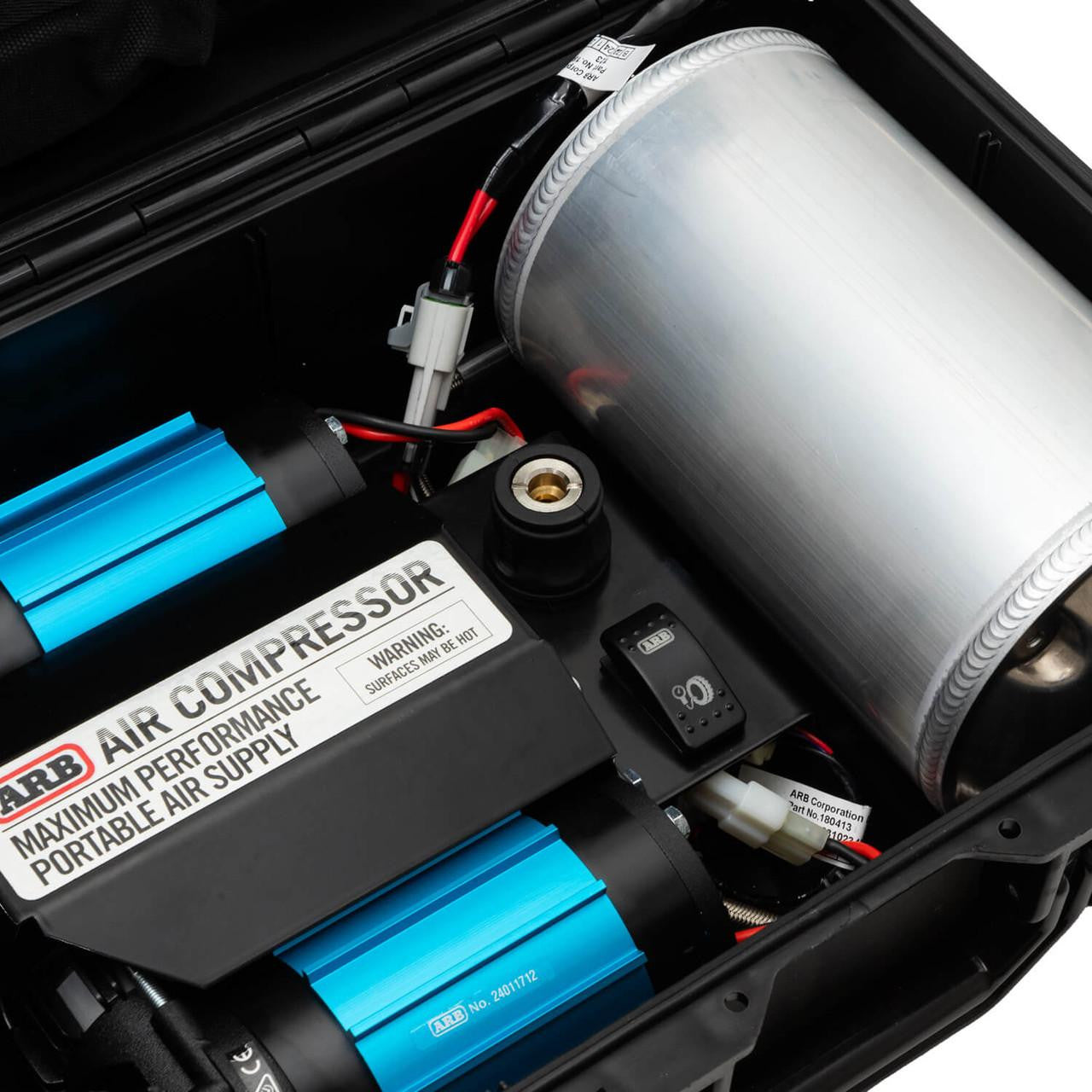

MAXIMUM OUTPUT (TWIN MOTOR)

Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line MAXI fuse provides professional circuit protection.

HIGH OUTPUT (SINGLE MOTOR)

With a class-leading flow rate, the single motor compressor has been designed for fast tire inflation and a range of other functions whether they be for work or play.

ARB AIR COMPRESSOR SPECIFICATIONS

MODEL	CURRENT DRAW (NO LOAD)	AIR FLOW @ 0 KPA	AIR FLOW @ 0 PSI	CURRENT DRAW (LOAD)	AIR FLOW @ 200KPA	AIR FLOW @ 29 PSI	DUTY CYCLE	LOAD PROTECTION	AIR LOCKER® SOLENOID MANIFOLD	THERMALLY PROTECTED MOTOR
Air Locker® Activation System (12V)	5.5A	27.7L/m	0.98CFM	7.5A	19.7L/m	0.70CFM	35%	No	Yes	No
High Output 12V	14A	87.2L/m	3.08CFM	25A	66L/m	2.34CFM	50%	Yes (In loom)	Yes	Yes
High Output 24V	7A	87.2L/m	3.08CFM	12.6A	66L/m	2.34CFM	50%	Yes (In loom)	Yes	Yes
Maximum Performance 12V	28A	174.4L/m	6.16CFM	50A	132L/m	4.68CFM	100%	Yes (In loom)	No	Yes
Maximum Performance 24V	14A	174.4L/m	6.16CFM	25A	132L/m	4.68CFM	100%	Yes (in loom)	No	Yes
