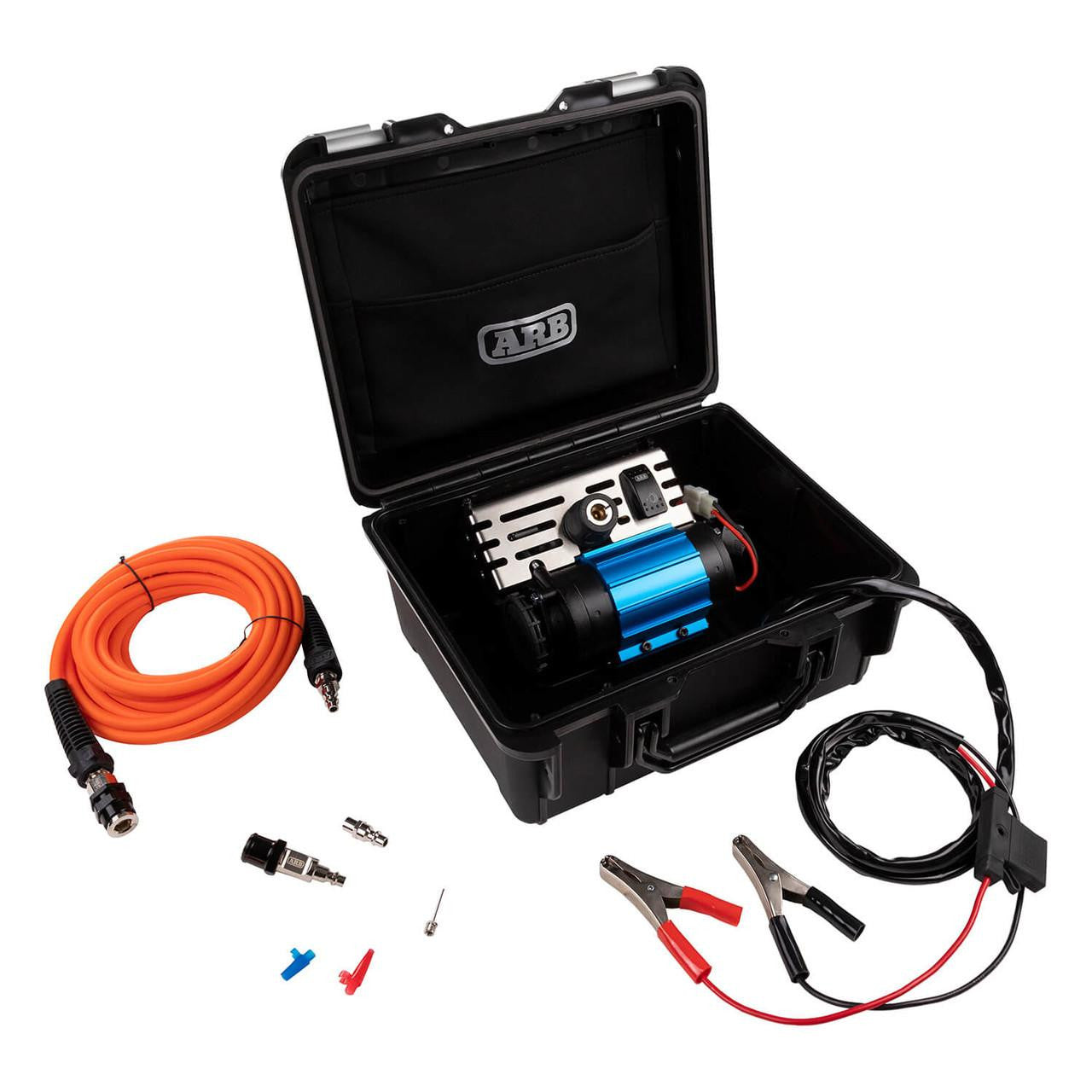

ARB Single Motor Portable 12V Air Compressor | CKMP12V2
ARB Single Motor Portable 12V Air Compressor | CKMP12V2
Couldn't load pickup availability
Free Shipping
Features & Benefits

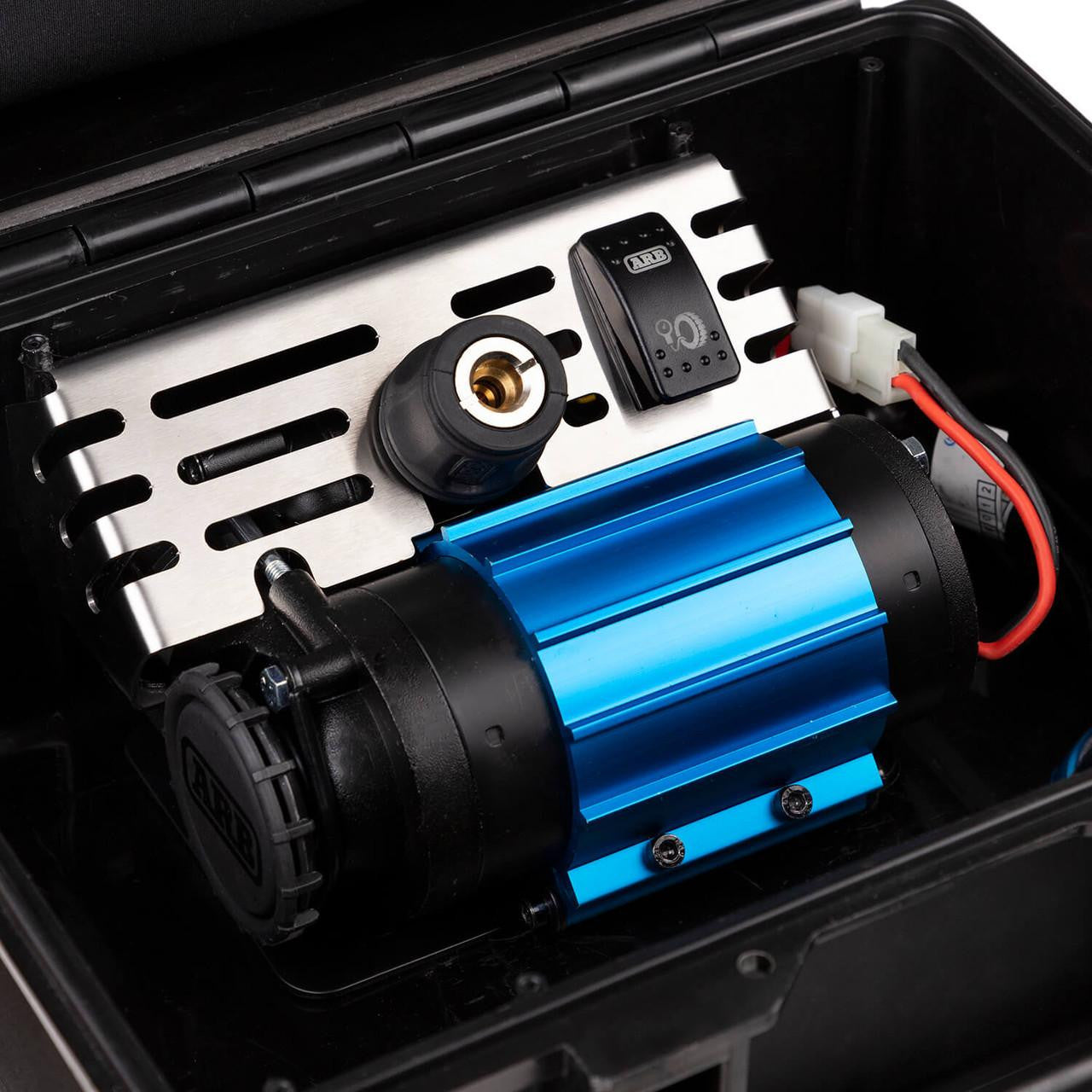

- Built-in pressure switch with over pressure safety valve
- Motor is internally thermal protected against extreme temperature damage
- Weather proof impact resistant polypropylene carry case
- Duty cycle is 50%
- Hard anodized cylinder bore for reduced friction
- Teflon impregnated carbon fiber piston seals

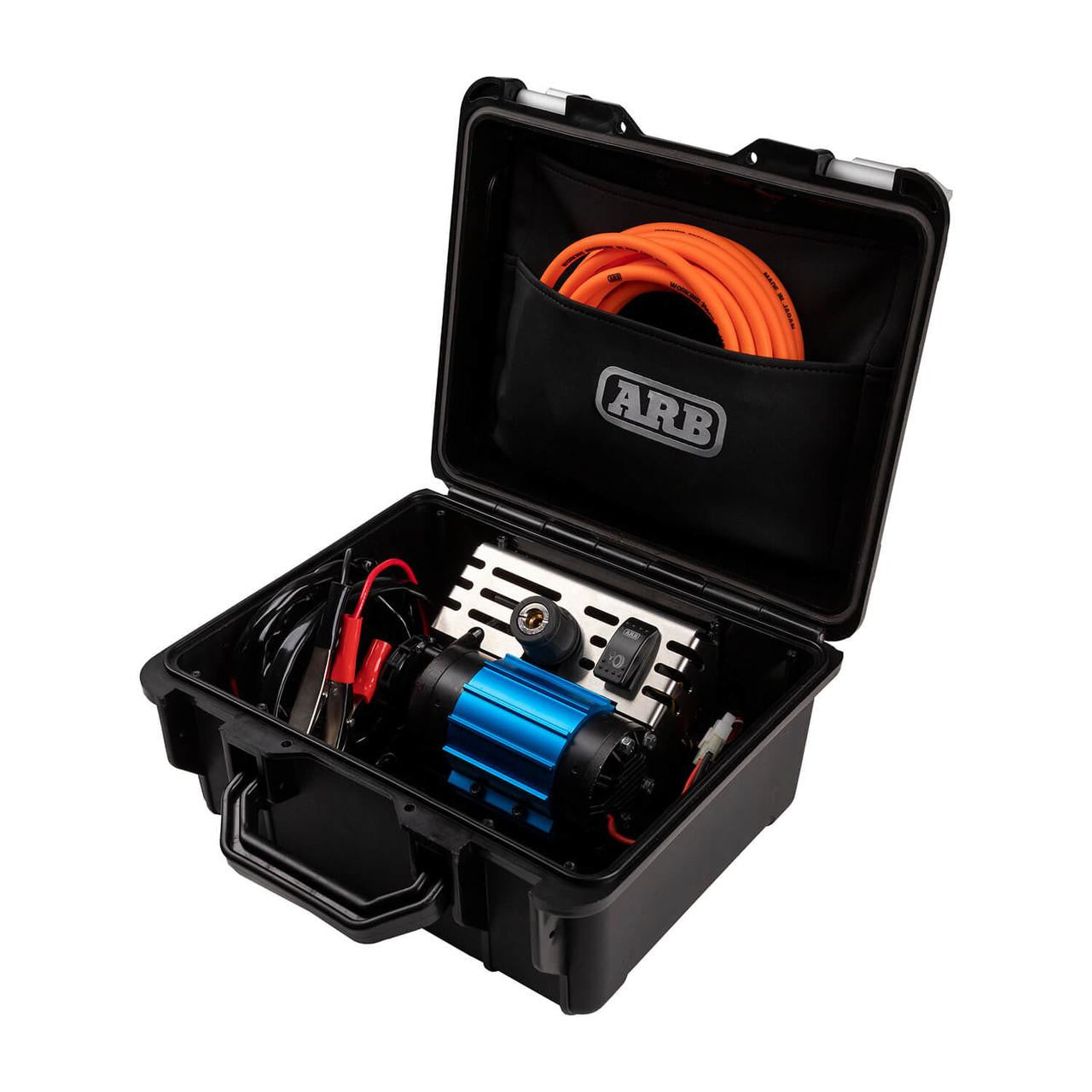

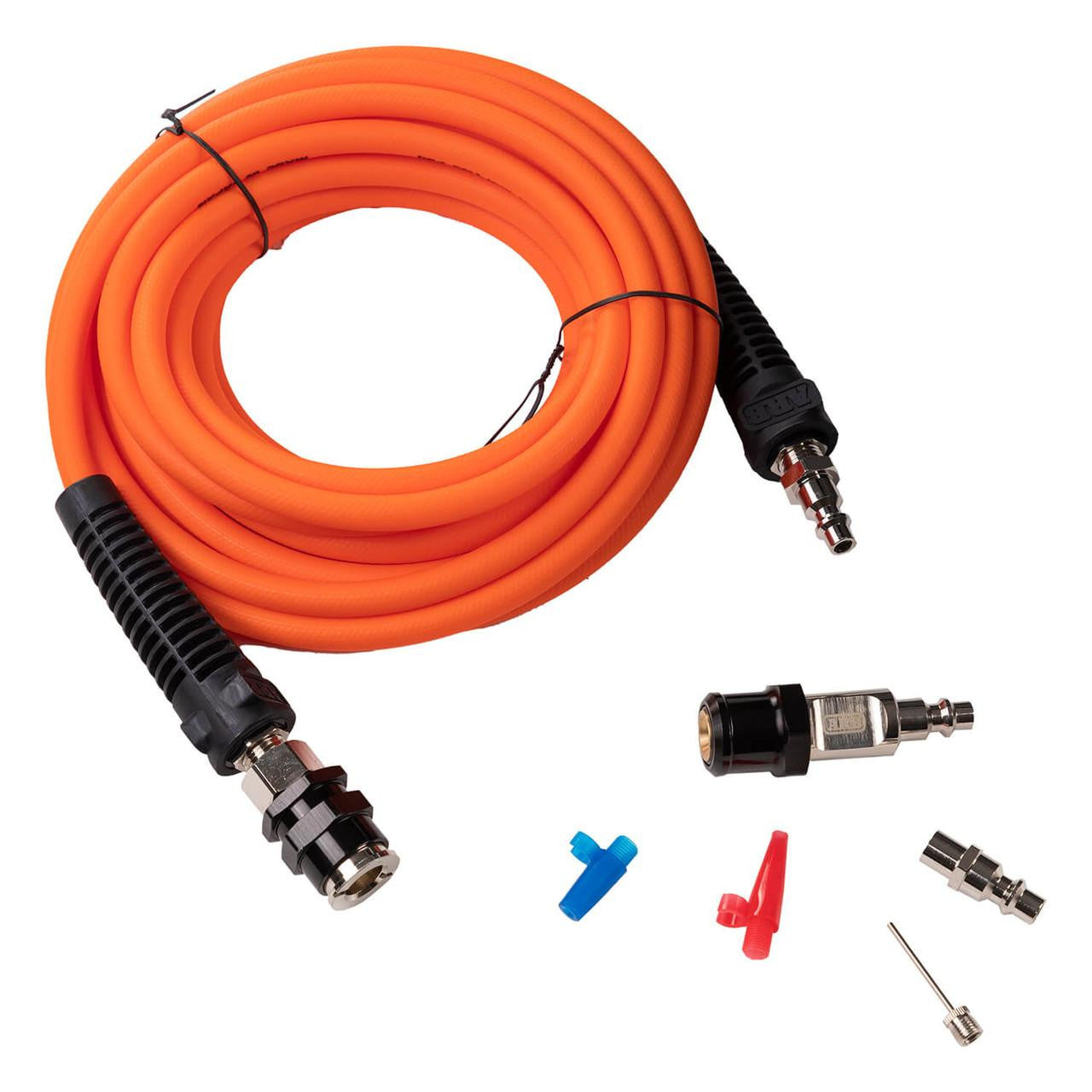

- Handy neoprene pocket to store air hose and accessories
Product Highlights
-

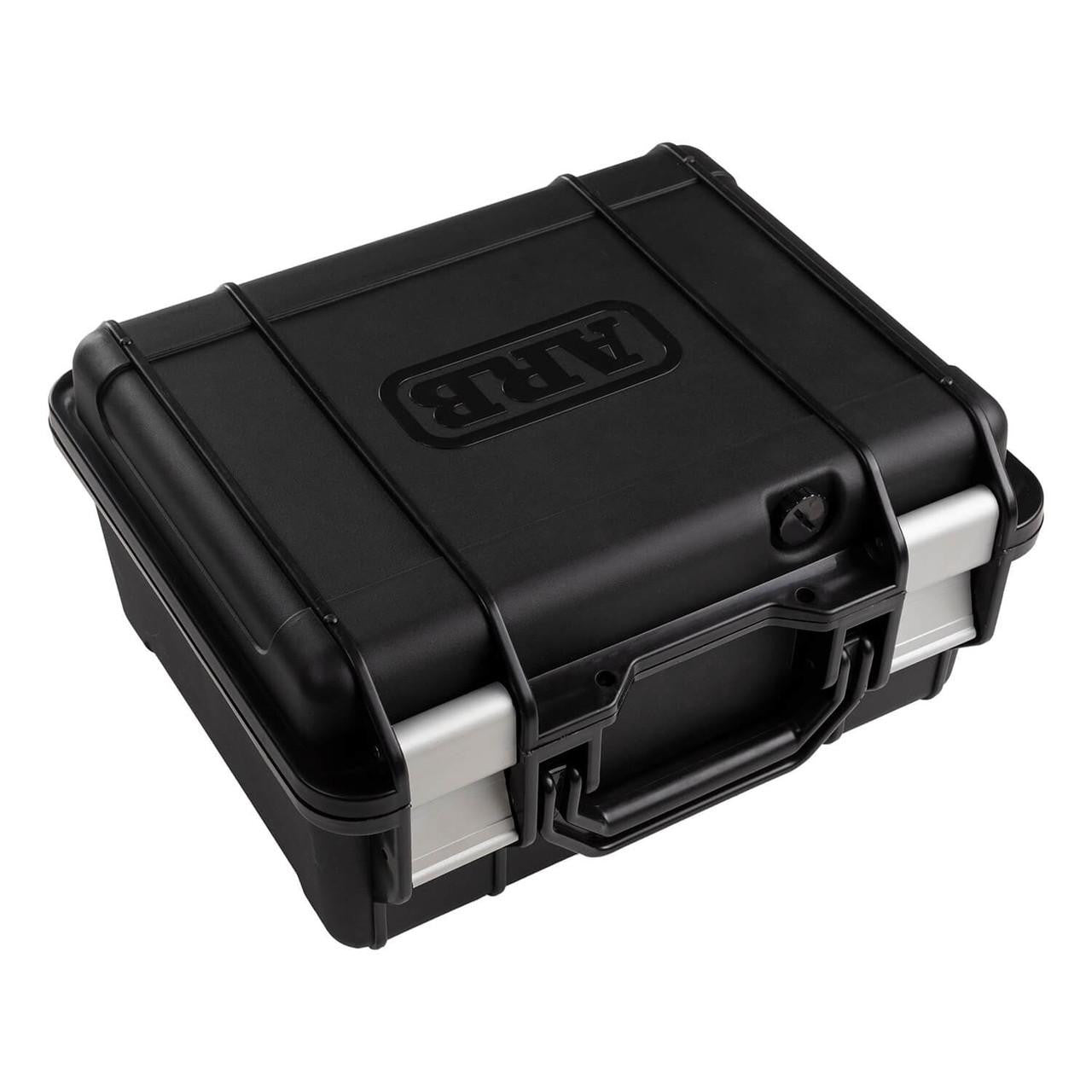

HARDSHELL CARRY CASE
-

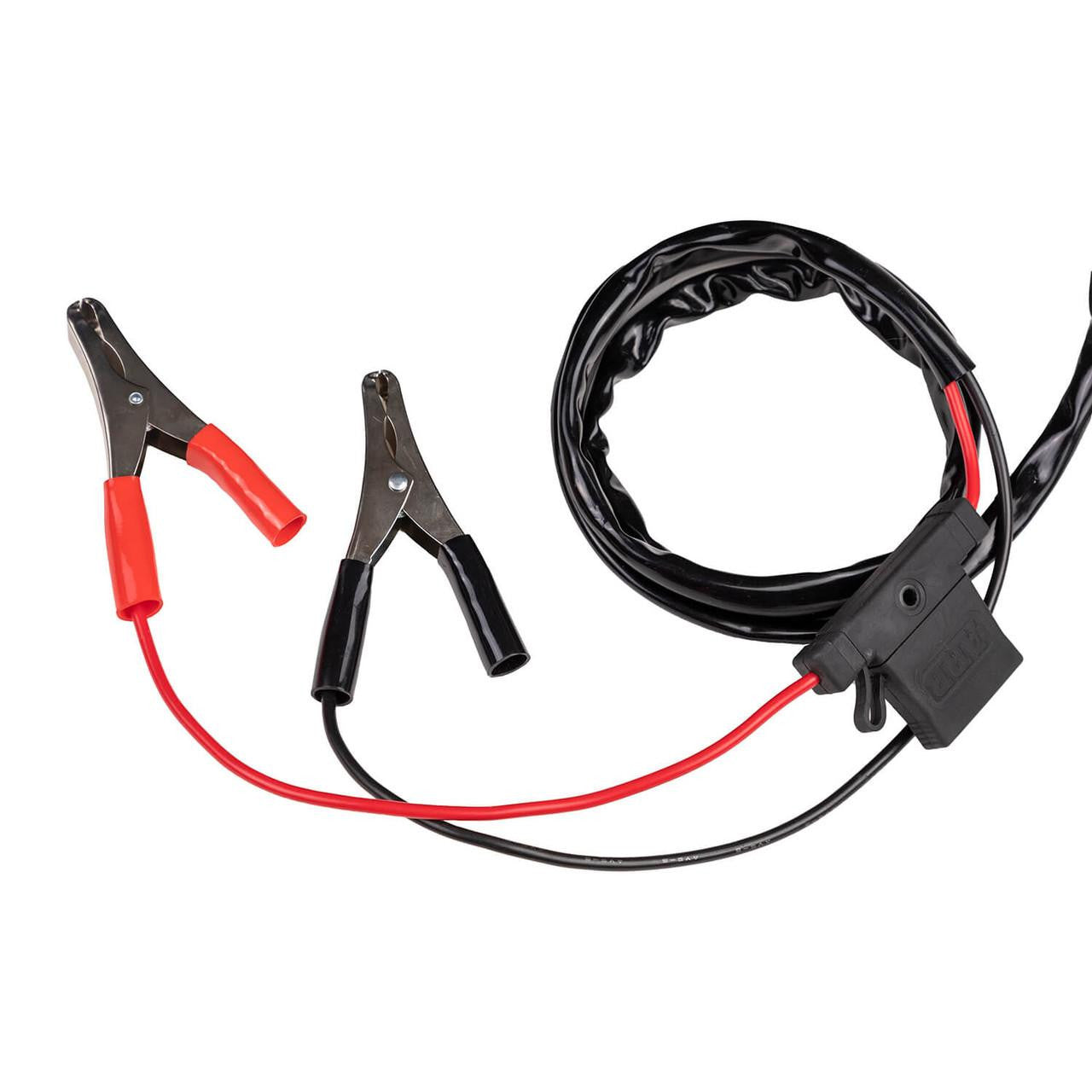

QUICK DISCONNECT CLIPS
-
FROM TRAIL TO JOB SITE

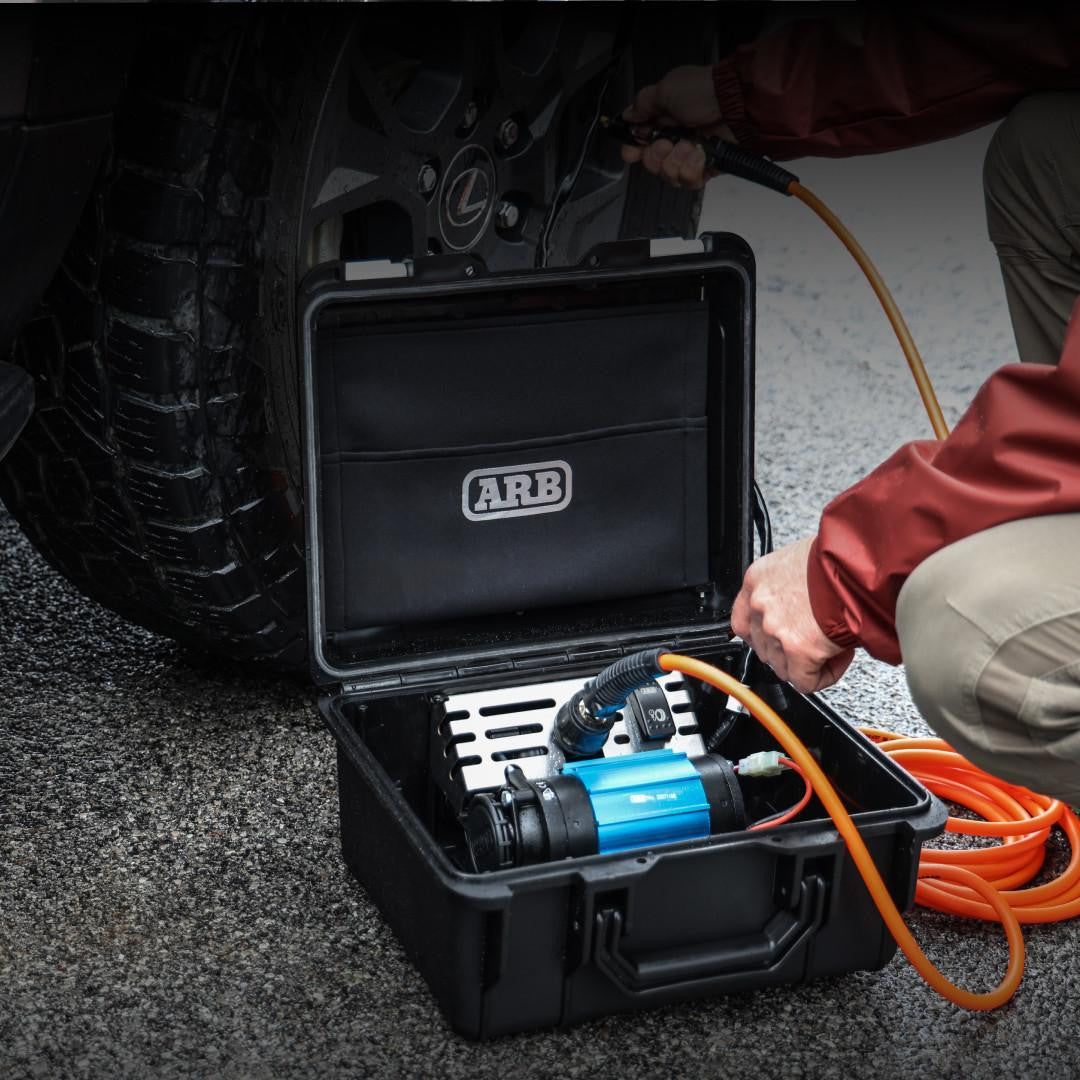

AIR ON-THE-GO
When it comes to air, well, we can't live without it. ARB portable air compressors are an incredible resource for work and play; just ask the thousands of off-roaders around the world whom praise their reliability and performance. This hard-earned reputation stems from superior engineering and quality materials that stand the test of time.
COMPARE OPTIONS
MAXIMUM OUTPUT (TWIN MOTOR)
Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line MAXI fuse provides professional circuit protection.
HIGH OUTPUT (SINGLE MOTOR)
With a class-leading flow rate, the single motor compressor has been designed for fast tire inflation and a range of other functions whether they be for work or play.
ARB AIR COMPRESSOR SPECIFICATIONS
| MODEL | CURRENT DRAW (NO LOAD) | AIR FLOW @ 0 KPA | AIR FLOW @ 0 PSI | CURRENT DRAW (LOAD) | AIR FLOW @ 200KPA | AIR FLOW @ 29 PSI | DUTY CYCLE | LOAD PROTECTION | AIR LOCKER® SOLENOID MANIFOLD | THERMALLY PROTECTED MOTOR |
|---|---|---|---|---|---|---|---|---|---|---|
| Air Locker® Activation System (12V) | 5.5A | 27.7L/m | 0.98CFM | 7.5A | 19.7L/m | 0.70CFM | 35% | No | Yes | No |
| High Output 12V | 14A | 87.2L/m | 3.08CFM | 25A | 66L/m | 2.34CFM | 50% | Yes (In loom) | Yes | Yes |
| High Output 24V | 7A | 87.2L/m | 3.08CFM | 12.6A | 66L/m | 2.34CFM | 50% | Yes (In loom) | Yes | Yes |
| Maximum Performance 12V | 28A | 174.4L/m | 6.16CFM | 50A | 132L/m | 4.68CFM | 100% | Yes (In loom) | No | Yes |
| Maximum Performance 24V | 14A | 174.4L/m | 6.16CFM | 25A | 132L/m | 4.68CFM | 100% | Yes (in loom) | No | Yes |
