ARB Brushless Single Motor Portable 12V Air Compressor | CKBLP12
ARB Brushless Single Motor Portable 12V Air Compressor | CKBLP12
Couldn't load pickup availability
Free Shipping
Features & Benefits
- 50% Increase in output – ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring.
- Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity.
- Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
- Status Reporting – Live diagnostics via audio and visual alerts
- Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
- Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems
- Polarity Correction Harness - The Brushless portable includes a polarity correction harness, allowing you to connect either of the two blue alligator clamps to either terminal on your battery

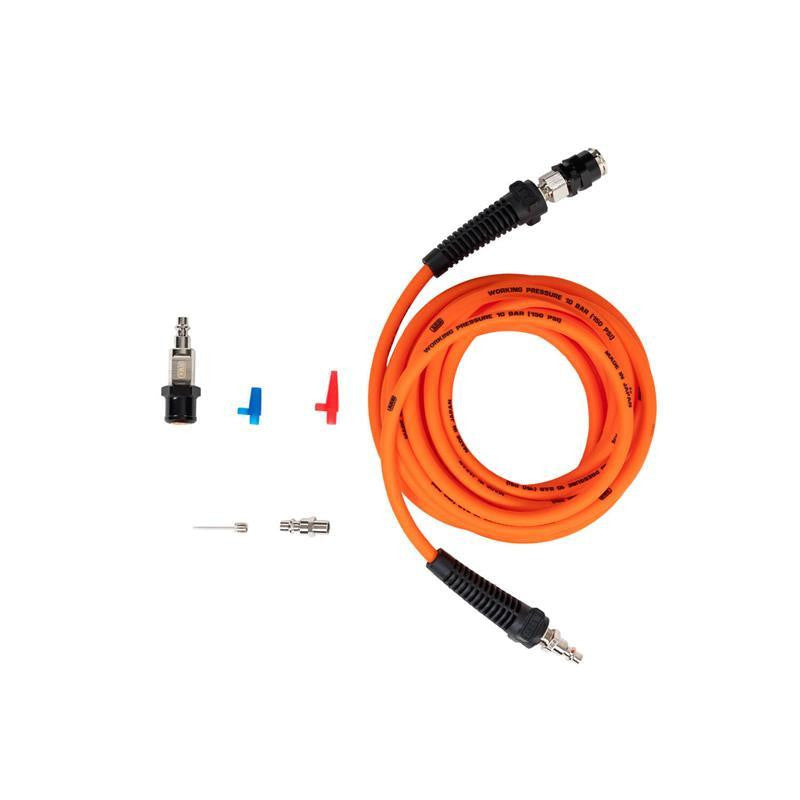

- Includes 20ft Air Hose, inflation tire chuck
Product Highlights

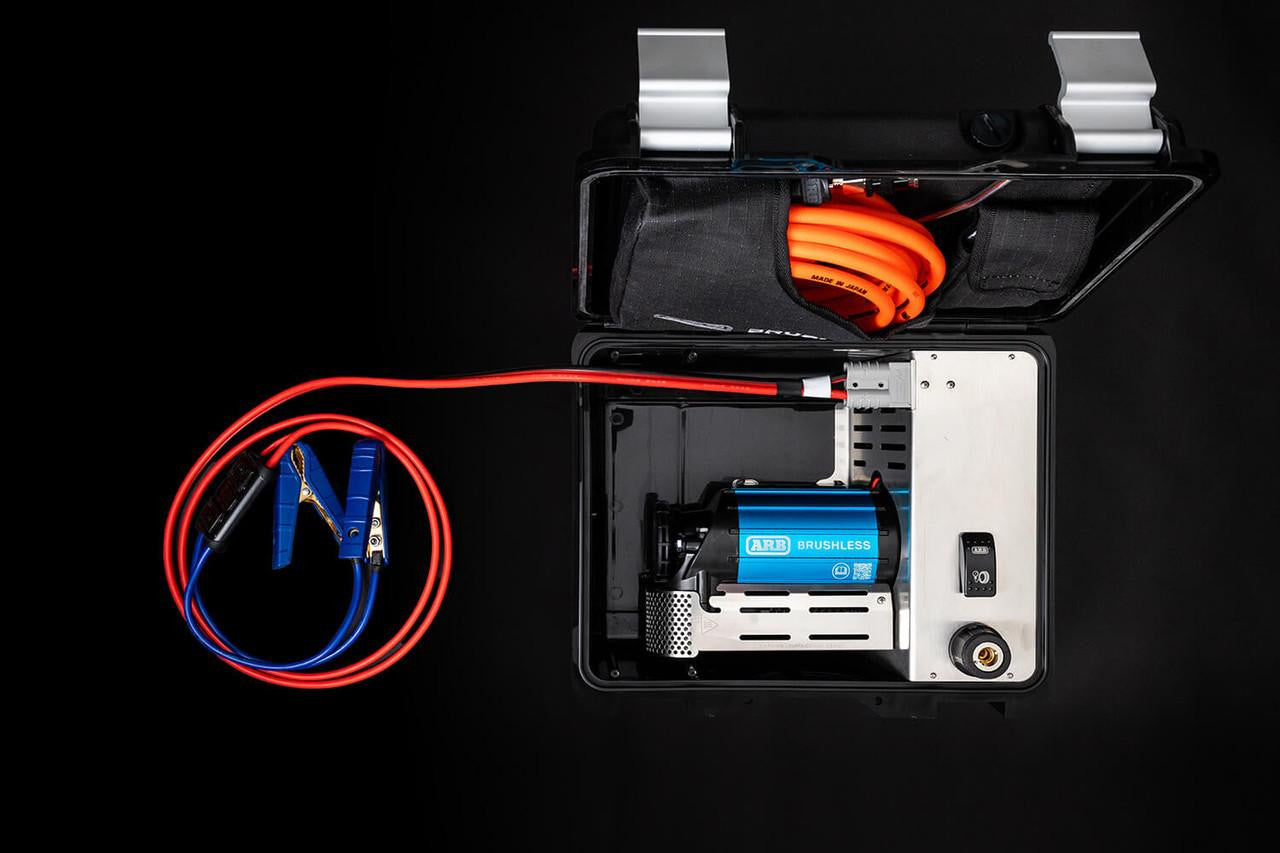

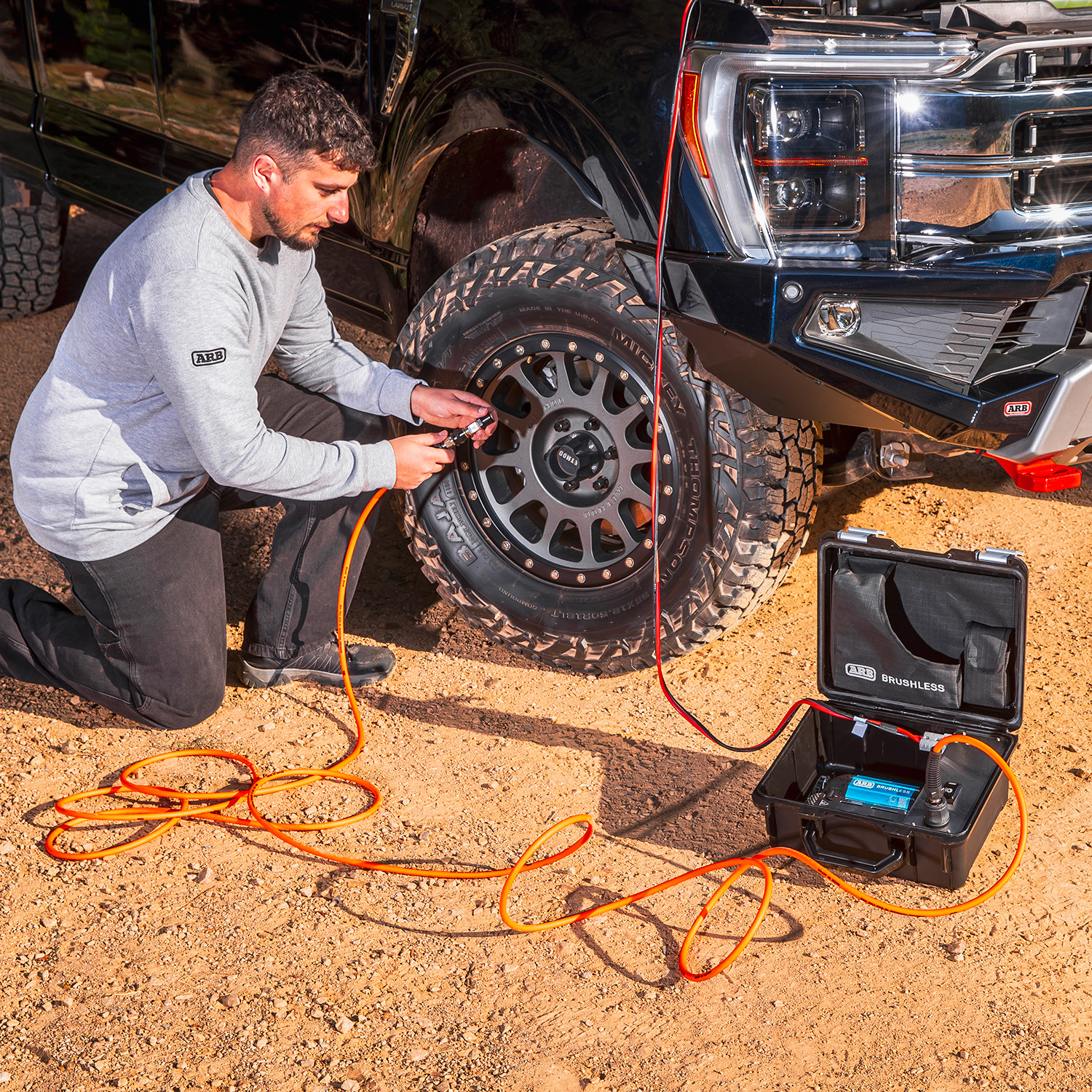

AIR ON-THE-GO
A portable compressor is ideal for smaller rigs whereby mounting space is a constraint or for those with multiple vehicles, as it can be used with any car, truck, or SUV. ARB’s portable compressors, including the Brushless model, come in a durable carry case with battery leads for easy power access—perfect for occasional use.
-
50% INCREASE IN OUTPUT
ARB Brushless compressors boast an additional 50% output when compared to our current market leading ARB brushed compressors thanks to the brushless motor, meaning less time inflating and more time adventuring.
-

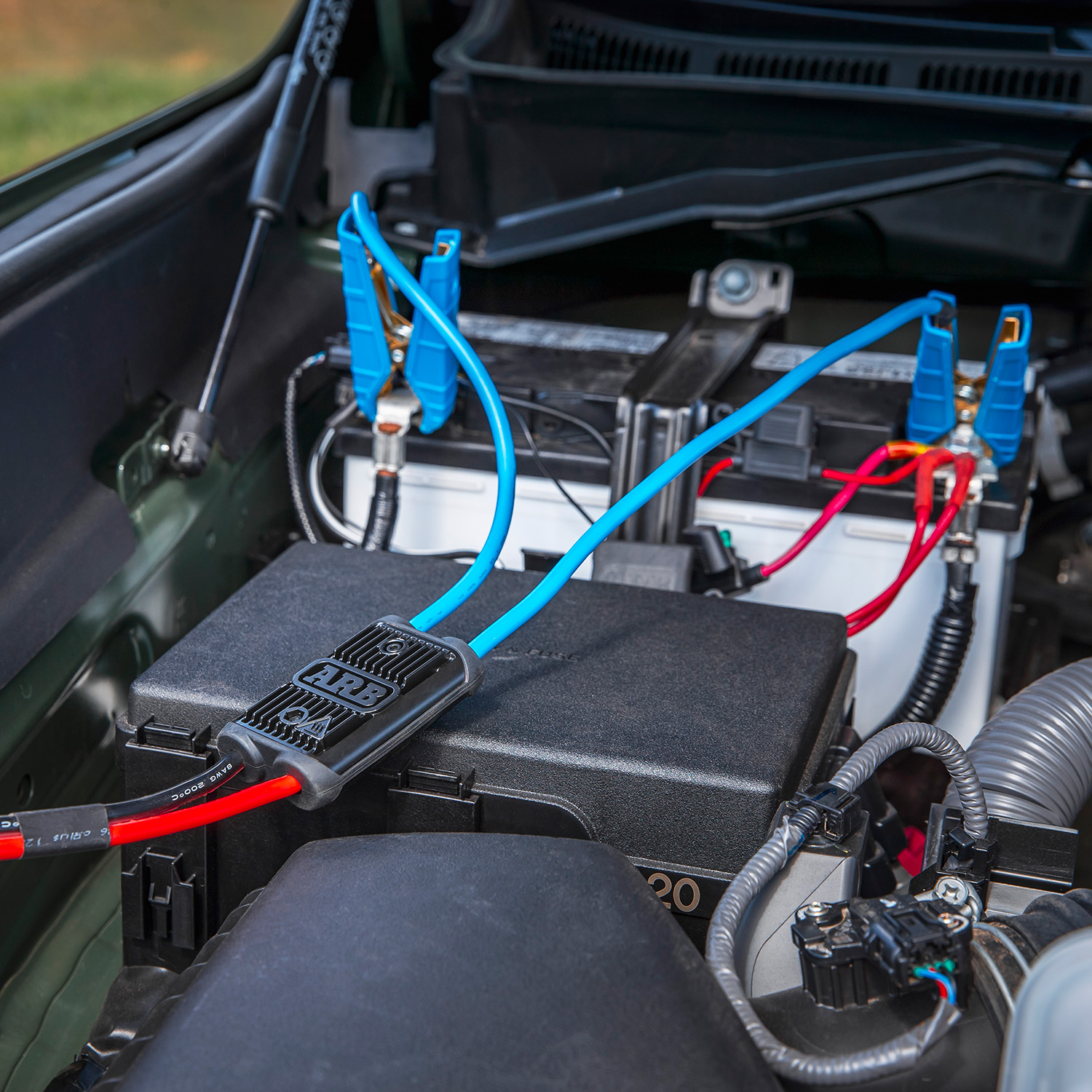

POLARITY CORRECTION HARNESS
Portable Brushless models feature blue clamps and a polaritycorrection harness, allowing either clamp to be connected to eitherbattery terminal.
-

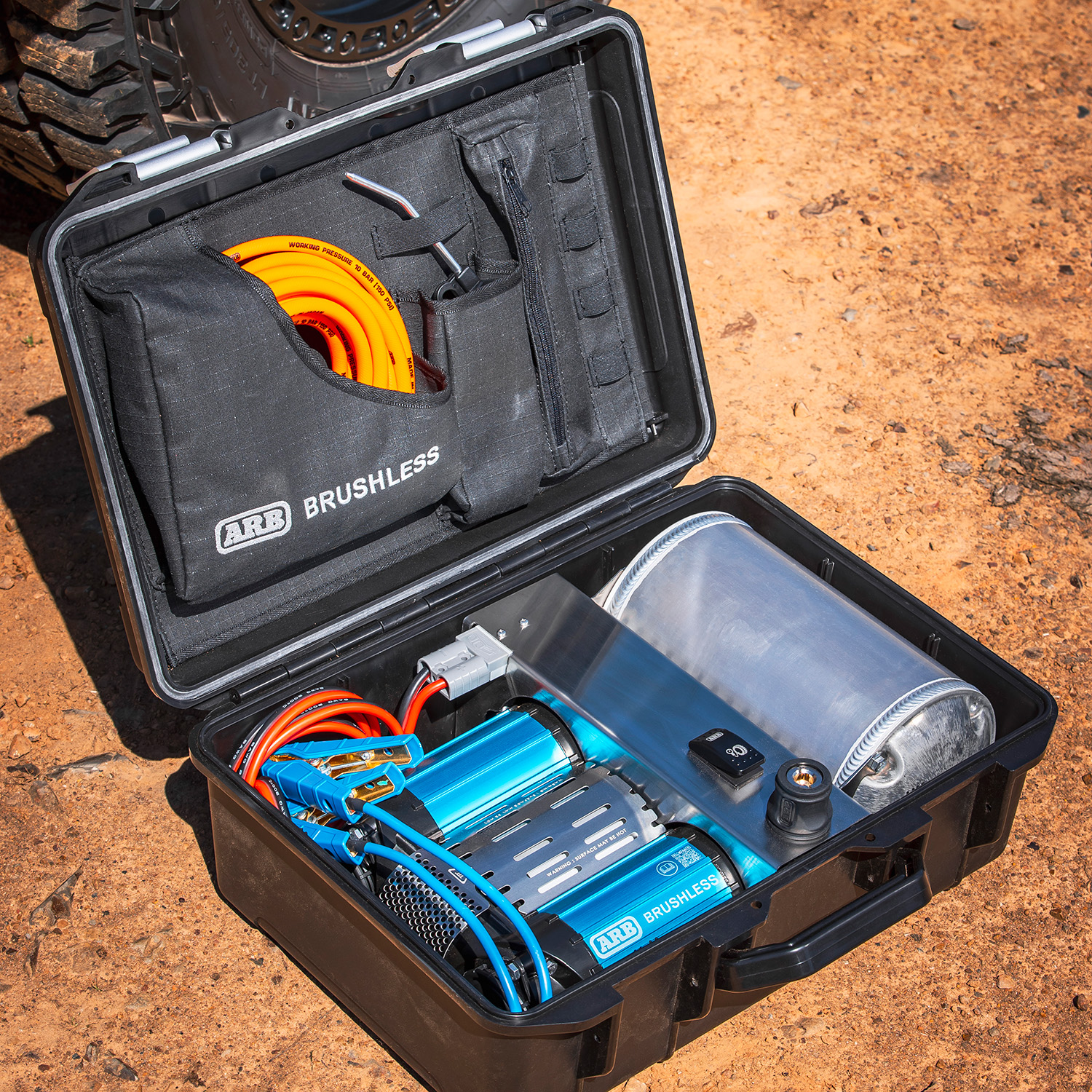

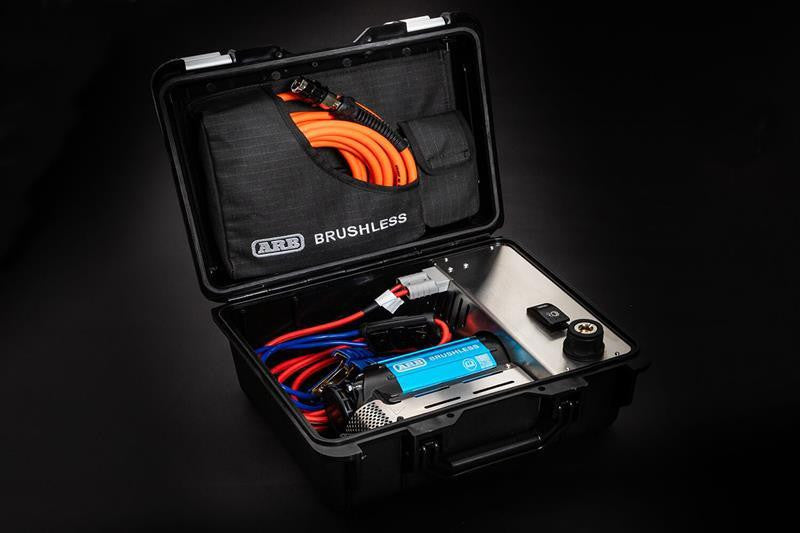

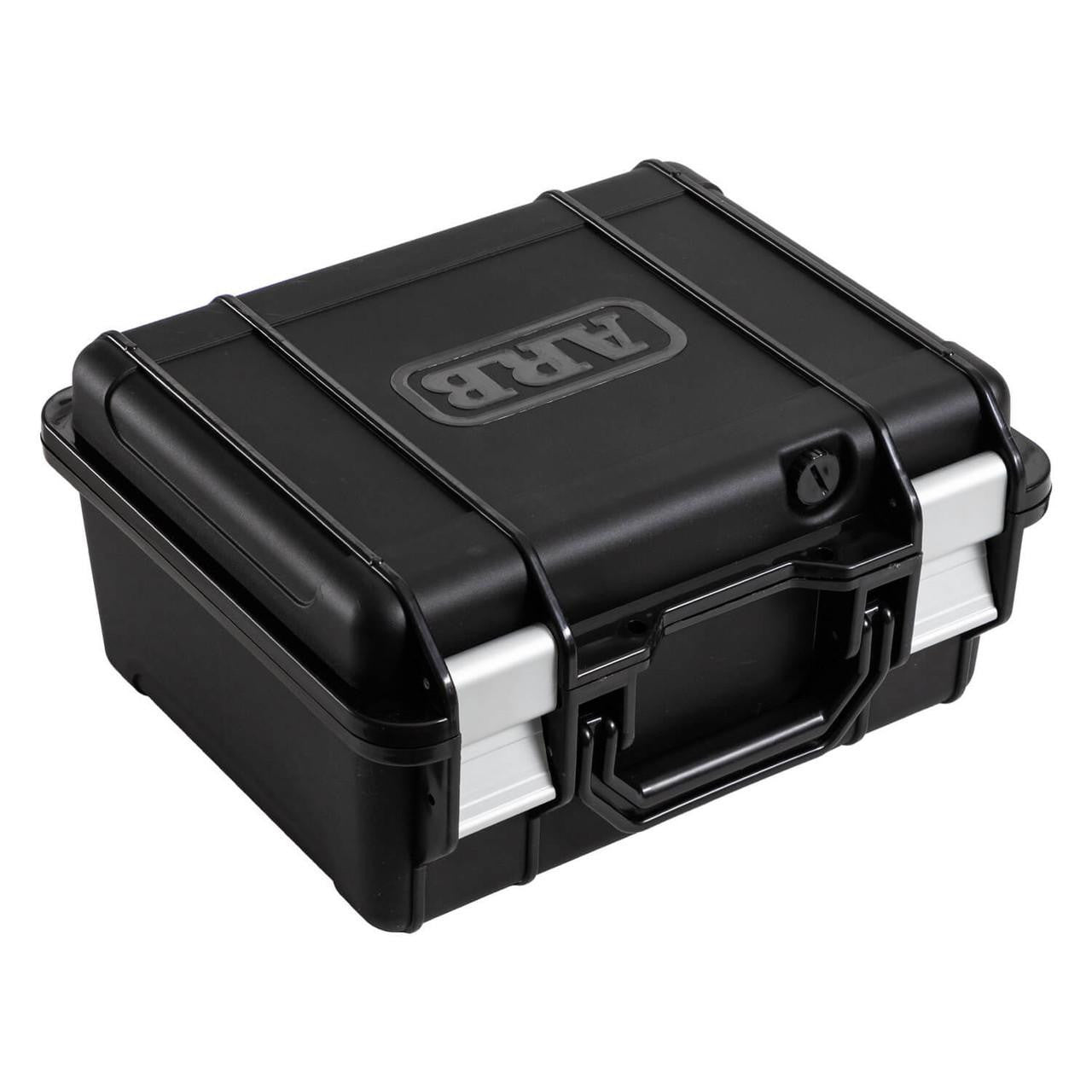

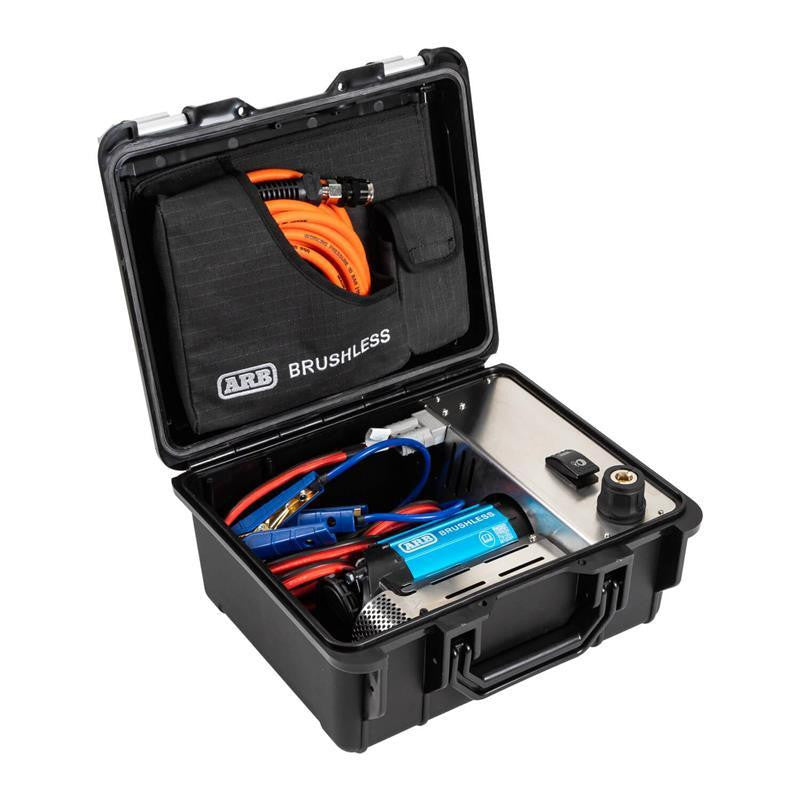

WATERPROOF CARRY CASE
Kit includes: Water proof case, compressor. canvas organizer, 20 feet air hose, and tire accessories.
COMPARE OPTIONS
TWIN MOTOR
Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line MAXI fuse provides professional circuit protection.
SINGLE MOTOR
With a class-leading flow rate, the single motor compressor has been designed for fast tire inflation and a range of other functions whether they be for work or play.
ARB AIR COMPRESSOR SPECIFICATIONS
| DESCRIPTION | CURRENT DRAW (NO LOAD) | AIR FLOW @ 0 KPA
lpm |
AIR FLOW @ 0 PSI
cfm |
CURRENT DRAW (LOAD)
A |
AIR FLOW @ 200KPA
lpm |
AIR FLOW @ 29 PSI
cfm |
DUTY CYCLE
% |
CURRENT DRAW (UNDER LOAD) | AIR LOCKER® SOLENOID MANIFOLD | THERMALLY PROTECTED MOTOR |
|---|---|---|---|---|---|---|---|---|---|---|
| Brushless Single Onboard Air Compressor 12V | 15A | 130.0 | 4.59 | 40 | 88.0 |
3.10 |
100 | 45 | Yes | Yes |
| Brushless Single Portable Air Compressor 12V | 15A | 130.0 |
4.59 |
40 |
88.0 |
3.10 |
90 |
45 |
No |
Yes |
|
Brushless Twin Onboard Air Compressor 12V |
30A |
260.0 |
9.18 |
80 |
176.0 |
6.20 |
100 |
90 |
Yes |
Yes |
|
Brushless Twin Portable Air Compressor 12V |
30A |
260.0 |
9.18 |
80 |
176.0 |
6.20 |
90 |
90 |
No |
Yes |
|
Air Locker® Activation System 12V |
5.5A |
27.7 |
0.98CFM |
7.5A |
19.7 |
0.70CFM |
35 |
9 |
Yes |
No |
|
Brushed Single Onboard Air Compressor 12V |
14A |
87.2 |
3.08CFM |
25A |
66.0 |
2.34CFM |
50 |
32 |
Yes |
Yes |
|
Brushed Single Onboard Air 24V |
7A |
87.2 |
3.08CFM |
12.6A |
66.0 |
2.34CFM |
50 |
18 |
Yes |
Yes |
|
Brushed Twin Onboard Air Compressor 12V |
28A |
174.4 |
6.16CFM |
50A |
132 |
4.68CFM |
100 |
|
Yes |
Yes |
|
Brushed Twin Onboard Air Compressor 24V |
14A |
174.4 |
6.16CFM |
25A |
132 |
4.68CFM |
100 |
68.6 |
Yes |
Yes |
